Air Source Wifi Heating And Cooling Heat Pump For Radiator And Hot Water

Name: Air Source Wifi Heating And Cooling Heat Pump For Radiator And Hot Water
Brand: JNOD
Rating: 5.0 (85 reviews)

Model:
JM220HC
Brand:
JNOD
Power Supply:
220V-240V~/50Hz
Refrigerant:
R134A
Max.Outlet Water Temp:
55ºC
Max Power Input (kW):
1.31
Max Current (A):
5.59
Operating Air Temperature:
-7~43ºC
Hot Water Volume (L/h):
39
Power Input（kW):
0.104-0.84
COP:
7.97-5.2

Availability:

Quantity:



Inquire Add to Basket

Product Description

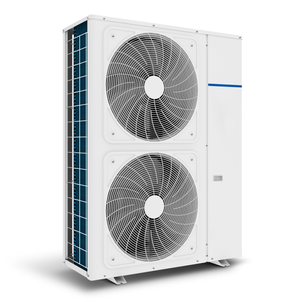

JNOD R32 EVI Air Source Wifi Heating And Cooling Heat Pump For Radiator And Hot Water.

Monoblock heat pump

*Air to Water heat pump water heaters for heating and hot water

*WiFi Remote Control

The heating and cooling heat pump can be controlled by Wi-Fi, it release the users that can operate their heat pumps anytime and anywhere.

*Three in One Function Mode

Domestic Hot Water(DHW)+ Heating + Cooling.

*Panasonic Compressor

EVI system can ensure stable and safe operation of unit under -25℃ ambient temperature.

*Product Parameters

Model		JM95HC3N	JM120HC3N	JM150HC3N	JM200HC3N	JM220HC3N	JM260HC3N	JM320HC2N
Heating Capacity Range (kW)		2-9.5	2.8-11.5	3.5-15.2	4.5-19.5	5-22	13.1-26	16.6-32
Heating (A7/6℃,W30/35℃)	Heating Capacity(kW)	9.5	11.5	15.2	20	22	26	32
	Power Input(kW)	2.18	2.60	3.53	4.63	5.13	6.16	7.69
	COP(W/W)	4.35	4.4	4.31	4.32	4.29	4.22	4.16
Heating (A-12/6℃,W36/41℃)	Heating Capacity(kW)	6.83	7.8	10.2	12.8	14.6	17.2	19.4
	Power Input(kW)	2.79	3.12	3.91	4.96	5.77	6.88	7.95
	COP(W/W)	2.45	2.52	2.61	2.58	2.53	2.5	2.44
Heating (A7/6℃,W40/45℃)	Heating Capacity(kW)	9.4	11.4	14.8	19.2	21.8	24.7	30.5
	Power Input(kW)	3.14	3.37	4.30	5.45	6.23	7.04	8.79
	COP(W/W)	2.93	3.38	3.44	3.52	3.5	3.51	3.47
Heating (A7/6℃,W47/55℃)	Heating Capacity(kW)	9.2	11.3	14.17	18.1	21.3	24.2	29.3
	Power Input(kW)	3.14	3.79	4.87	5.99	7.15	8.29	10.10
	COP(W/W)	2.93	2.98	2.91	3.02	2.98	2.92	2.9
Cooling (A35/24℃,W23/18℃)	Cooling Capacity(kW)	8.6	10.4	13.3	16.82	17.8	19.5	24.1
	Power Input(kW)	2.51	2.96	3.73	4.65	4.97	5.70	7.13
	EER(W/W)	3.43	3.51	3.57	3.62	3.58	3.42	3.38
Cooling (A35/24℃,W12/7℃)	Cooling Capacity(kW)	7.8	8.9	11.2	13.1	13.5	15.6	18.6
	Power Input(kW)	2.84	3.28	4.10	4.75	4.95	5.82	7.02
	EER(W/W)	2.75	2.71	2.73	2.76	2.73	2.68	2.65
Max Power Input (kW)		3.1	3.8	5.2	6.14	6.9	8.85	11.4
Max Current (A)		5.6	6.8	9.3	10.9	12.3	15.8	20.4
WIfi Control		Yes	Yes	Yes	Yes	Yes	Yes	Yes
Controller		LED	LED	LED	LED	LED	LED	LED
Power Supply		380V~415V/50Hz/60Hz
Operating Air Temp.(℃）		-25~43
Max.Outlet Water Temp(℃)		55
Refrigerant		R32
Fan Quantity		1			2
Compressor Brand		Panasonic(Rotary)
Brand of EEV		SANHUA
Brand of 4-way valve		SANHUA
Heat Exchanger		Plate heat exchanger
Casing Material		Galvanized Sheet
Water Pipe Connection (inch)		G1"(female thread)					G1.5"(female thread)
Noise Level at 1m dB(A)		46	48	52	55	56	57	58
Water Flow (m³/h)		1.5	2.06	2.6	3.44	3.78	4.47	5.5
Water Pressure Drop (kPa)		14	14	16	20	20	21	22
Min/Max heating water pressure(bar)		2.0/10.0
Net Dimensions (L/W/H) mm		1127/475/810	1127/475/810	1127/475/960	1127/475/1360	1127/475/1360	1127/475/1560	1127/475/1560
Package Dimensions (L/W/H)mm		1195/535/960	1195/535/960	1195/535/960	1195/535/1110	1195/535/1510	1195/535/1510	1195/535/1710
Net Weight KG		91	92	103	120	120	150	160
Gross Weight KG		106	107	120	145	145	180	190
Loading Quantity 20GP/40GP,40HQ PCS		44/96/96	44/96/96	22/48/48	22/48/48	22/48/48
